Key Specifications
- Net Power 54.3 kW
- Operating Weight 13800 kg
- Maximum Digging Depth 6040 mm
- Emission Tier 4 / Stage V
High Efficiency, Low Operating Costs | Caterpillar Medium Excavator

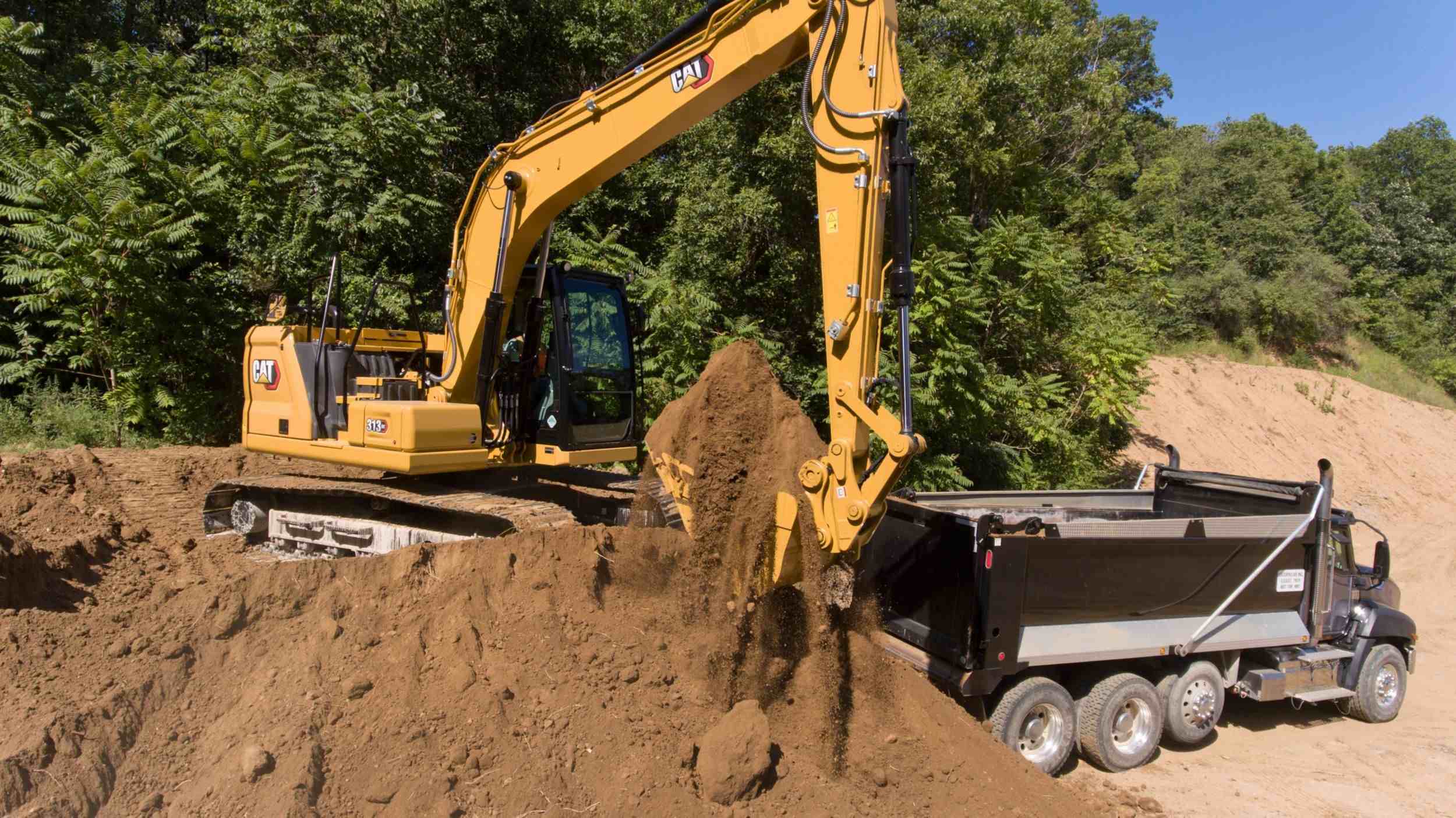

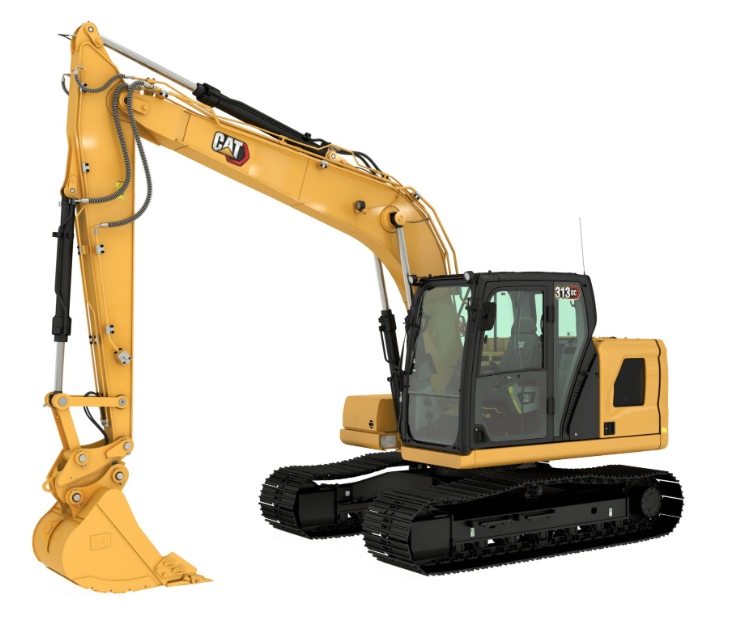

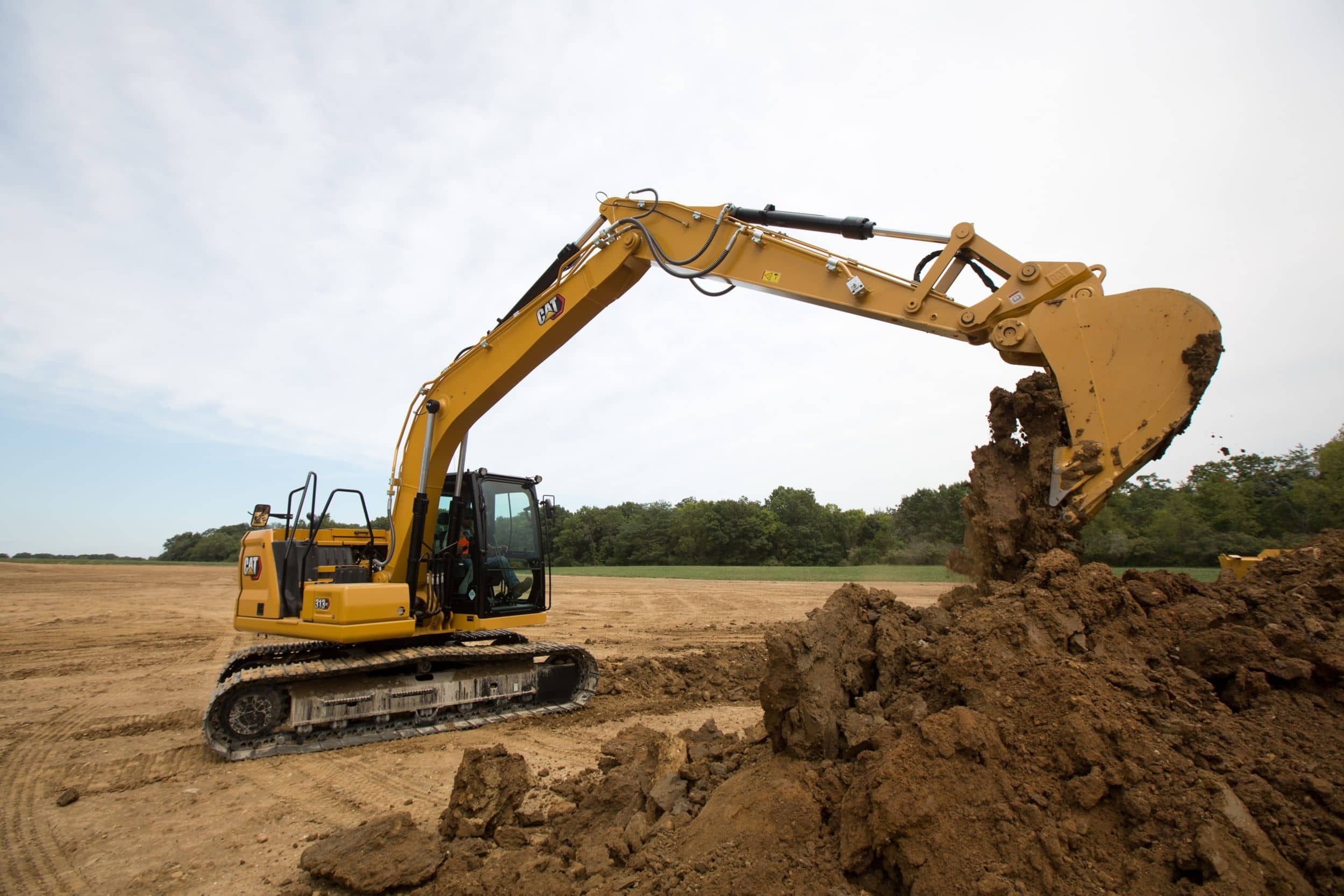

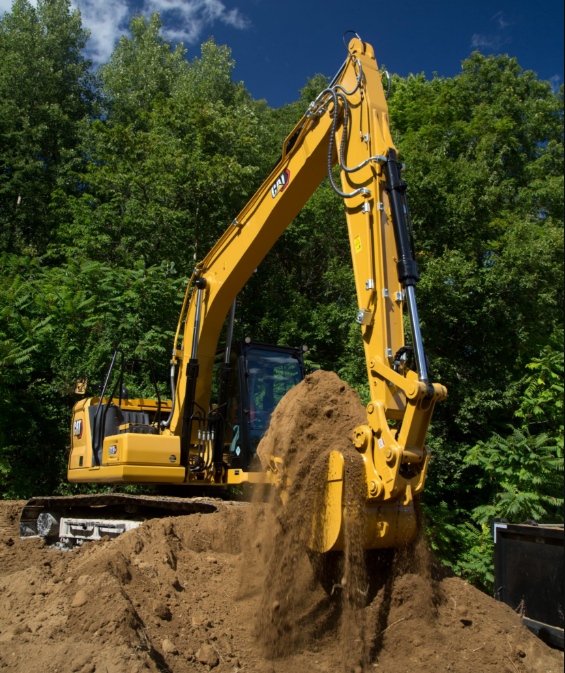

The CAT 313GC Hydraulic Excavator is engineered to deliver exceptional performance in construction, mining, and earthmoving applications. Below is a comprehensive breakdown of its technical specifications to help you evaluate its capabilities for your projects.
From engine efficiency to working range, every detail is optimized for productivity and reliability.
| Net Power | 54.3 kW |
| Engine Model | Cat C3.6 |
| Engine Power - ISO 14396 | 55.4 kW |
| Engine Power - ISO 14396 (DIN) | 75 hp (metric) |
| Net Power - ISO 9249 (DIN) | 74 hp (metric) |
| Bore | 98 mm |
| Stroke | 120 mm |
| Displacement | 3.6 l |
| Operating Weight | 13800 kg |
| Max Digging Depth | 6040 mm |
| Boom | Reach 4.65 m (15'3") |
| Stick | Reach R3 m (9'8") |
| Bucket | GD 0.68 m³ (0.89 yd³) |
| Maximum Reach at Ground Level | 8660 mm |
| Maximum Cutting Height | 8830 mm |
| Maximum Loading Height | 6420 mm |
| Minimum Loading Height | 1600 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 5860 mm |
| Maximum Vertical Wall Digging Depth | 5190 mm |
| Minimum Working Equipment Radius | 2570 mm |
| Bucket Digging Force - ISO | 98.67 kN |
| Stick Digging Force - ISO | 59.29 kN |
